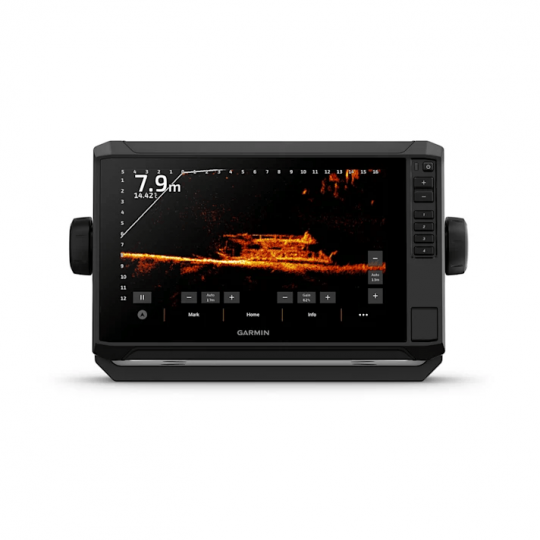

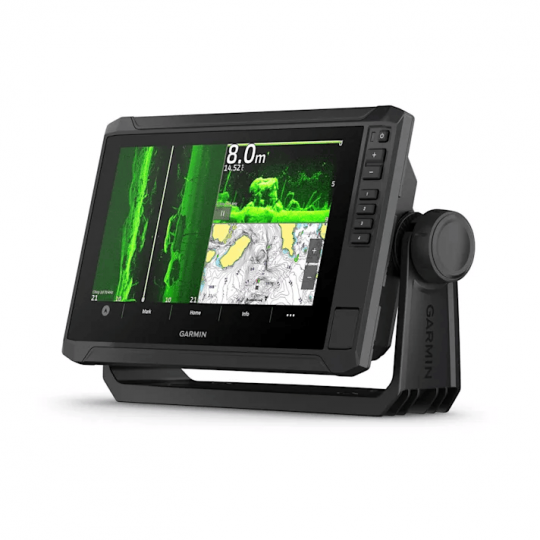

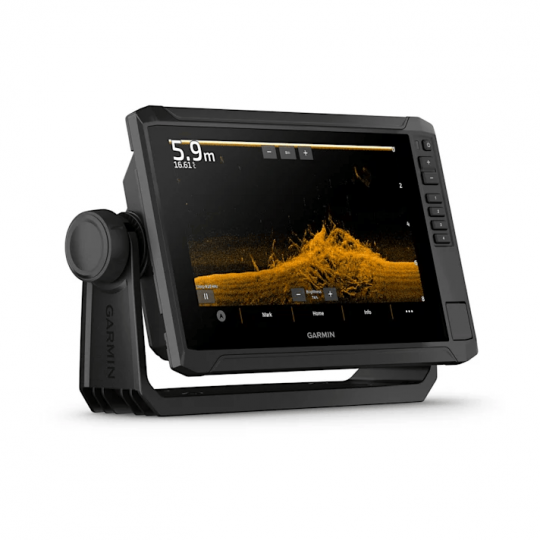

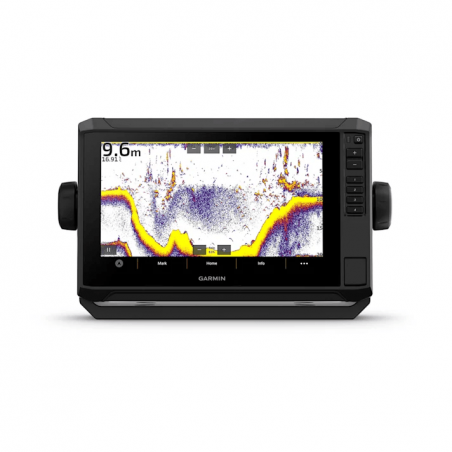

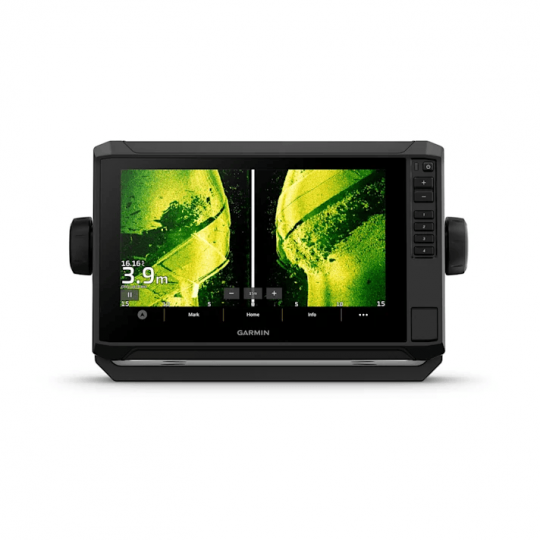

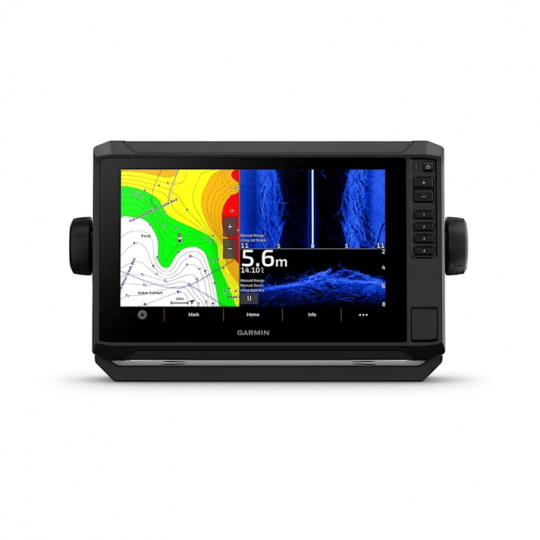

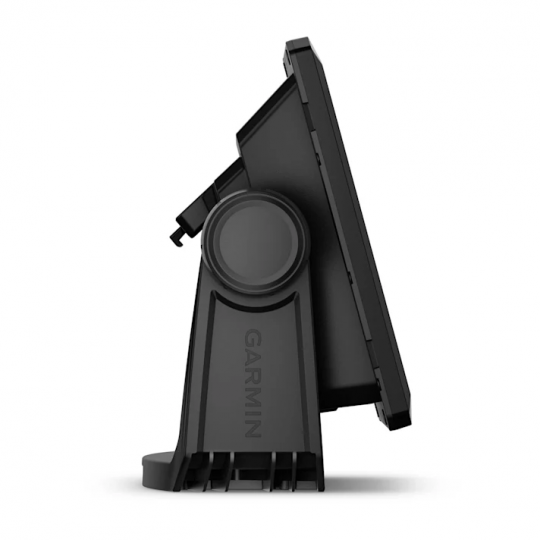

The fish finder Echomap UHD 2 TouchscreenFrom Garmin device, a 9-inch touch screen designed for fishing. Thanks to this fish finder With its cutting-edge technology, detailed maps, and premium touchscreen equipped with assistance buttons, you will be able to know the waters better than anyone else and discover new areas.
This combination Garmin It is available with a bright 6, 7 or 9 inch touchscreen, facilitated by keyboard assistance. This screen, clear and easy to read even under direct sunlight, makes the device simple and intuitive to use.
The device integrates three detection technologies: the fish finder traditional Garmin, ClearVü™ and SideVü™in addition to the LiveScope™ real-time scanning technology.transducer not included), which together provide remarkable details and distinct targets thanks to the Vivid and contrasting color palettes. The advantage is clear: more details and better target detection.
If you have anotherfish finderEchomap UHD 2 on your boat, you can share crucial information like images. fish finder, the waypoints (GPS points) and routes via the wireless network. The compatibility with mapping Garmin Navionics+™ guarantees you to navigate with the most accurate and up-to-date maps.
The free ActiveCaptain® application, through built-in Wi-Fi connectivity, offers you features such as OneChart™, Smart Notifications, software updates, and community data. Garmin QuickDraw™. The AutoGuidance+™ technology allows you to plot routes and navigate intelligently from fishing spot to fishing spot.
This fish finderConnects to the Force electric motor to create and follow routes, navigate to waypoints, and control speed. Compatible Power-Pole® anchor systems allow advanced boat control, including automatic anchor deployment and smart positioning.
Thanks to its multi-band GPS, this GPS unit ensures increased position accuracy, even in areas where signals are weak or reflected. The Power-Pole marine power manager, integrated into the trackers. Garmin, optimizes battery usage, helping you extend your time on the water.
In the box:
With transducer
- ECHOMAP UHD2 (the device varies depending on the selection)
- GT56-TM Transducer
- Power cable

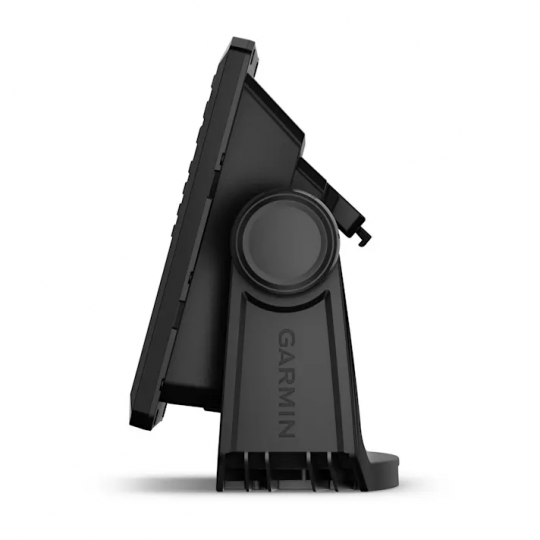

- Tiltable stirrup with quick release base
- Protective cover
- Equipment
- Documentation
Without transducer
- ECHOMAP UHD2 (the device varies depending on the selection)
- Cable of transducer 8 pins/fish finder 12 pins
- Power cable
- Tiltable stirrup with quick release base
- Protective cover
- Equipment
- Documentation
Features:
General
- Physical dimensions: 10.4" x 6.5" x 3.2" (26.4 x 16.6 x 8 cm)
- Weight: 2.9 lbs (1.3 kg)
- Water resistance: IPX7
- Touch screen
- Display type: WSVGA, TN
- Display format (width by height): 7.8" x 4.5", 9" (19.8 x 11.5 cm, 22.9 cm)
- Screen definition (width by height): 1024 × 600 pixels
- Mounting options: On bracket or recessed
- Buttons Touch screen with keyboard assistance
Cards and memory
- Accepts memory cards: 1 microSD™ card up to 32 GB maximum
- Waypoints: 5,000
- Plot points: 50,000
- Tracks: 50 tracks recorded
- Routes: 100
Sensors
- GPS
- GLONASS
- Galileo
- BeiDou
- Integrated receiver
- GPS Antenna: 10 Hz
- NMEA 2000® Compatible
- Supports WAAS
- Supports multiband GPS and multiple satellite constellations
Optional support for the card
- BlueChart g3
- BlueChart g3 Vision
- Garmin NavionicsThe text you provided ("+™") doesn't appear to be French. Please provide a valid French text to translate.
- Garmin Navionics Vision+™
- TOPO 100K
- Standard mapping
- Garmin Quickdraw Contours
Plotter functions
- Support for the AIS function (searches for the position of the nearest ships)
- Support for the ASN function (displays position data from ASN-compatible VHF radios)
- Supports radios compatible with FUSION-Link™
- Compatible with ActiveCaptain : Yes
- Functions for sailing
Electrical characteristics
- Power supply: from 9 to 18 V c.c.
- Observed consumption at 12 V DC : 1.72 A
- Maximum consumption at 12 V c.c. : 3.5 A
- Maximum consumption at 10 V c.c. : 20.7 W
Functions and characteristics of fish finder
- Display of fish finder
- Output power: 500 W
- Fish finder traditional (double frequency/beam) : Integrated (Single channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP)
- ClearVü: Integrated 260/455/800/1000/1200 kHz
- SideVü: Integrated 260/455/800/1000/1200 kHz
- Panoptix™ sonar
- "Livescope"

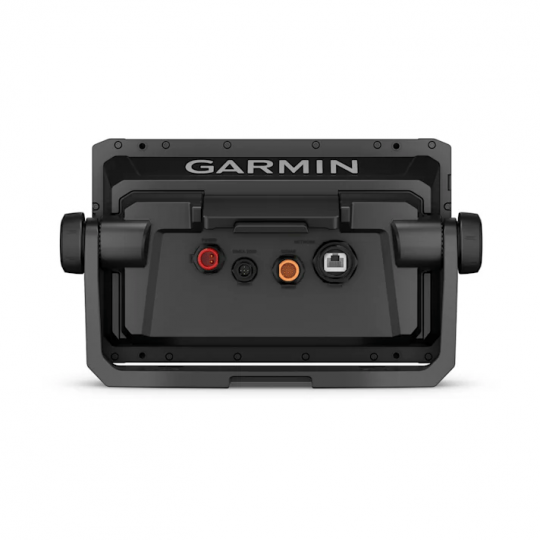

Connections
- NMEA 2000® ports: yes
- Network ports Garmin Marine Network™: 1
- Ports of transducer 12-pin: 1
- Bluetooth® Calls
- ANT+™ (connectivity)
- Network Garmin Wi-Fi® (local connection)
