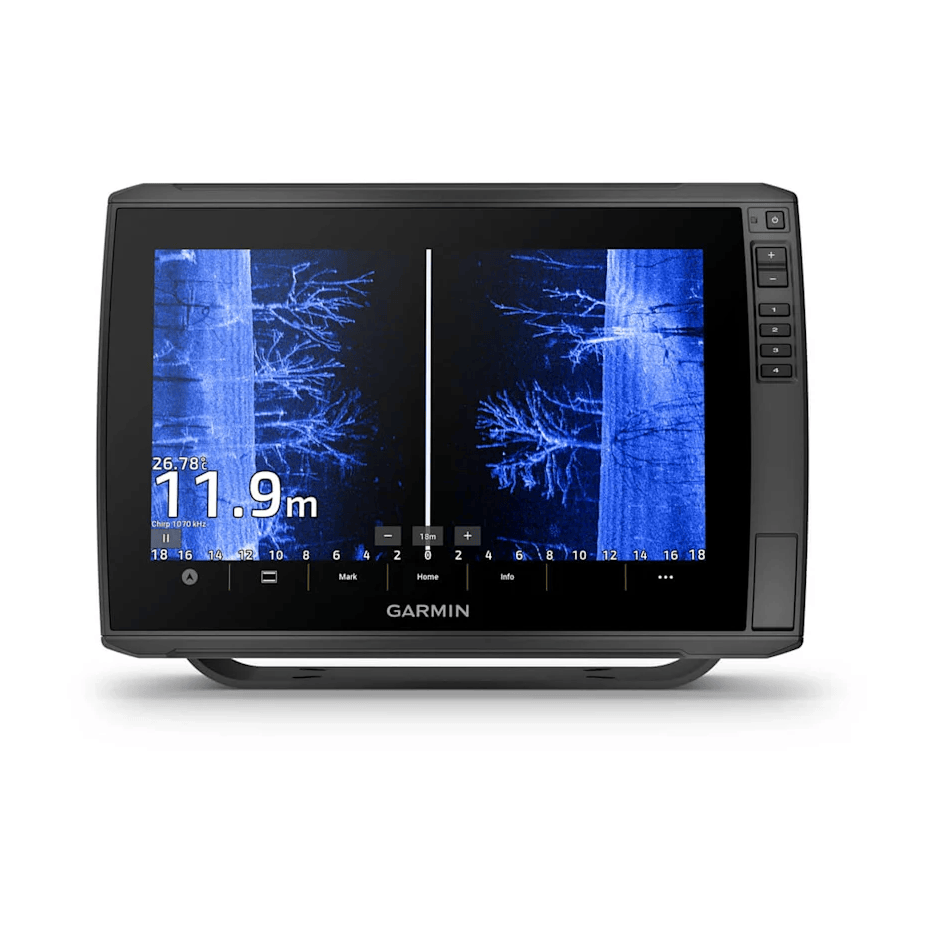

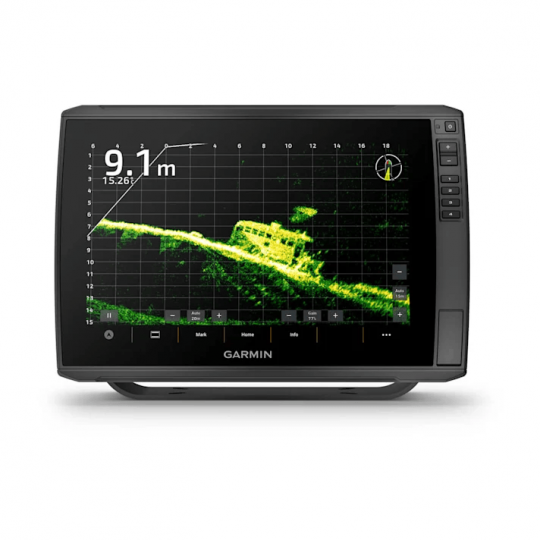

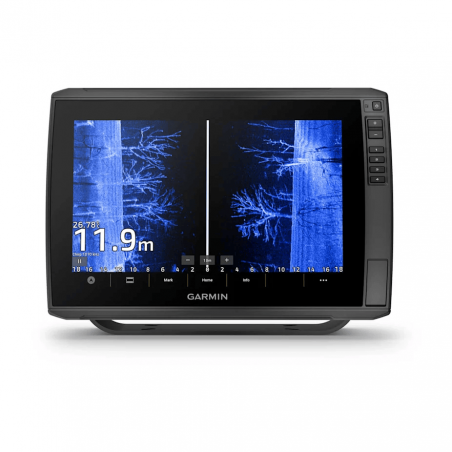

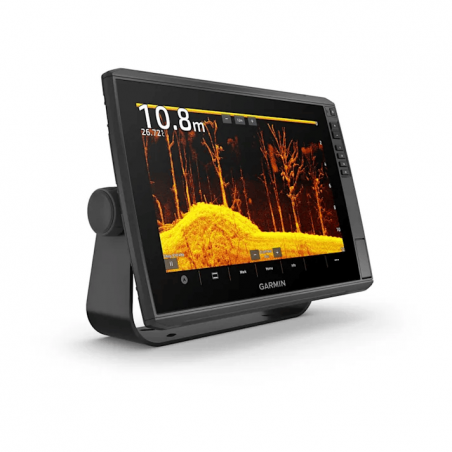

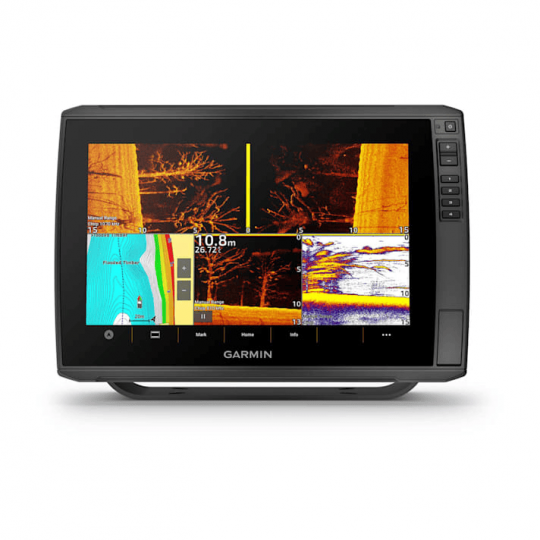

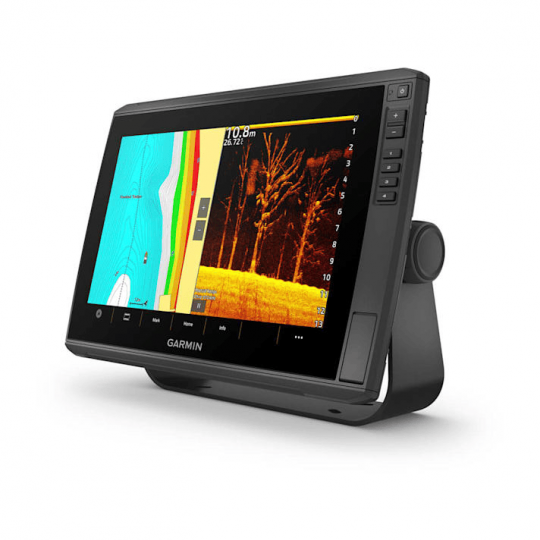

The fish finder Garmin Echomap Ultra 2 122sv is a comprehensive and technical GPS and detection device, designed to provide fishermen with the most accurate and detailed information about what is happening beneath the surface. This device is equipped with a 12-inch touchscreen, which displays data clearly and sharply, even in bright sunlight. Thanks to its optimized brightness, you can easily visualize fish and underwater structures such as seagrass beds, wrecks, and rock formations.
This fish finder is compatible with the cards Garmin Navionics+™ and Garmin Navionics Vision+™, offering precise cartographic details and regular updates for coastal and inland waters. These maps enhance your fishing sessions by providing you with detailed and real-time geographic information.
The Garmin Echomap Ultra 2 also supports LiveScope™ technology.transducer (sold separately), which allows real-time detection of fish movements. This feature provides you with accurate and dynamic images of what is happening under the surface, thus improving your ability to spot and track fish.
For those who are looking for even more detailed images, this fish finder can be associated with a transducer GT56 for ultra-high definition ClearVü™ and SideVü™ scanning, as well as a fish finder traditional CHIRP. These combined technologies provide a complete and accurate view of the bottom structure and potential targets.
The Vivid color palette used by this fish finder fish identification easier through structures or the bottom, making the fishing experience more intuitive and productive. In addition, the integrated wireless network allows for sharing images of fish finder, waypoints and tracks with other Echomap Ultra 2 or Echomap UHD2 devices on your boat.
The compatibility with the NMEA 2000® network allows for easy connection of the fish finder to various electronic equipment, such as electronic compasses, autopilots, and Fusion-Link™ audio systems. Multiband GPS technology allows for precise geolocation for confident navigation.
Finally, pairing with the free ActiveCaptain® app allows you to perform software updates, record your screen, and use community data. Garmin Quickdraw™. The wireless connection to the electric motor.Garmin Strength also offers you the possibility to navigate to waypoints, plot and follow routes, making your fishing trips more efficient and enjoyable.

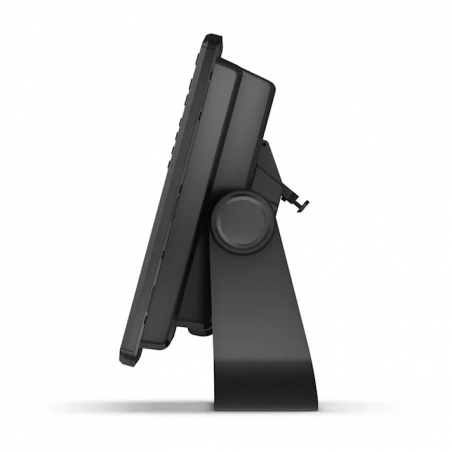

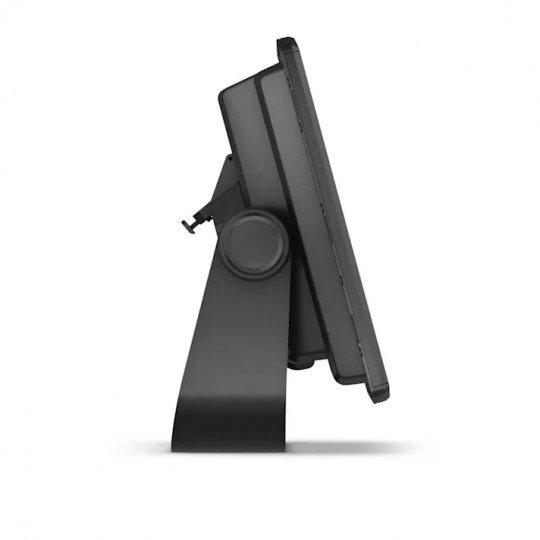

The installation of the Garmin Echomap Ultra 2 is facilitated by a quick-release mounting bracket, ensuring a fast and hassle-free setup.
In the box:
With transducer
- ECHOMAP Ultra 102sv
- Transducer GT56UHD-TM
- Charging/data cable
- Mounting stirrup with quick release base
- Sun visor
- Equipment
- Documentation
Without transducer
- ECHOMAP Ultra 102sv
- Charging/data cable
- Mounting stirrup with quick release base
- Sun visor
- Equipment
- Documentation
Features:
General
- Physical dimensions: 34.1 x 22.9 x 9.8 cm (13.4" x 9" x 3.9")
- Weight: 2.5 kg (5.5 lb)
- Water resistance : IPX7
- Touch screen
- Display type: WXGA, IPS
- Display format (width by height): 26.1 x 16.3 cm; 30.7 cm diagonal (10.3" x 6.4"; 12.1" diagonal)
- Screen definition (width by height): 1,280 x 800 pixels
- Mounting options: On bracket or recessed
- Buttons: Touch screen with keyboard assistance
Cards and memory
- Accepts memory cards: 2 microSD cards
- Waypoints: 5000
- Plot points: 50,000
- Tracks: 50 tracks recorded
- Routes: 100
Sensors
- GPS
- GLONASS
- Galileo
- BeiDou
- Integrated receiver
- GPS Antenna: 10 Hz
- NMEA 2000® Compatible
- Supports WAAS
- Supports multiband GPS and multiple satellite constellations
Optional support for the card
- BlueChart g3
- BlueChart g3 Vision
- Garmin NavionicsThe text you provided ("+™") doesn't appear to be French. Please provide a valid French text to translate.
- Garmin Navionics Vision+™
- TOPO 100K
- Standard mapping
- Garmin Quickdraw Contours
Plotter functions
- Support for the AIS function (searches for the position of the nearest ships)
- Support for the ASN function (displays position data from ASN-compatible VHF radios)
- Supports radios compatible with FUSION-Link™
- Compatible with ActiveCaptain : Yes
- Functions for sailing
Electrical characteristics
- Nutrition : from 9 to 18 V c.c.
- Observed consumption at 12 V DC : 2.5 A
- Maximum consumption at 12 V c.c. : 5 A
- Maximum consumption at 10 V c.c. : 36 W
Functions and characteristics of fish finder
- Display of fish finder
- Output power: 600 W
- Fish finder traditional (double frequency/beam) : Integrated (Single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)
- ClearVü: Integrated 260/455/800/1000/1200 kHz
- SideVü: Integrated 260/455/800/1000/1200 kHz
- Panoptix™ sonar
- "Livescope"

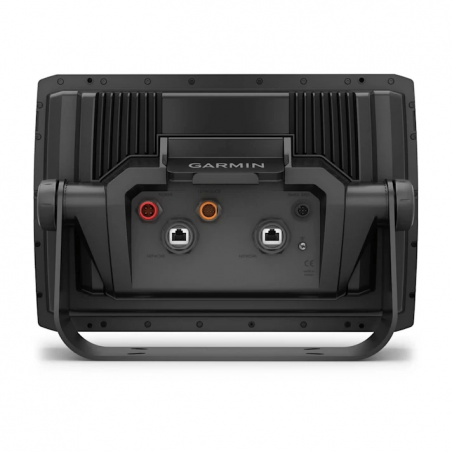

Connections
- NMEA 2000® Ports: 1
- Network ports Garmin Marine Network™: 2 (large connectors)
- Ports of transducer with 12 pins: fish finder 12-pin scanning
- ANT+™ (connectivity)
- Network Garmin Wi-Fi® (local connection)
