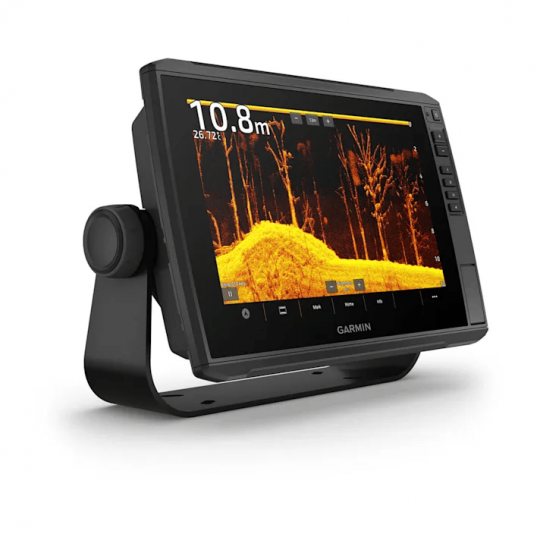

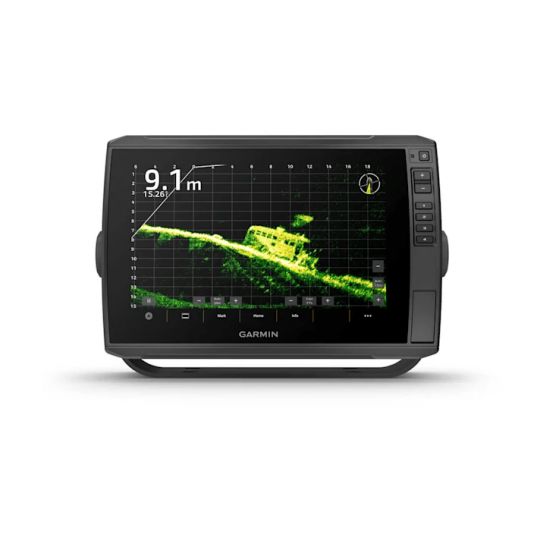

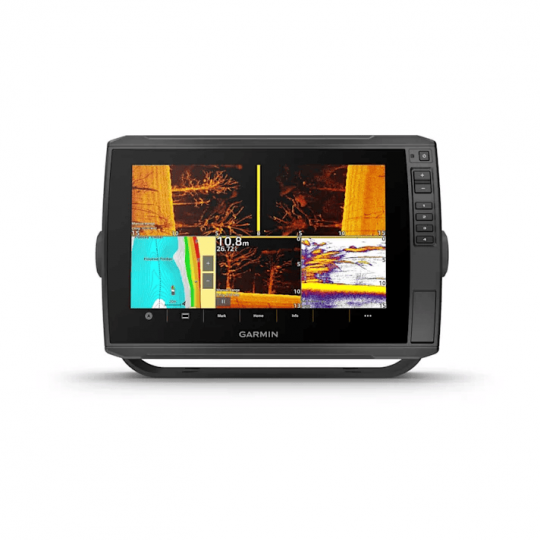

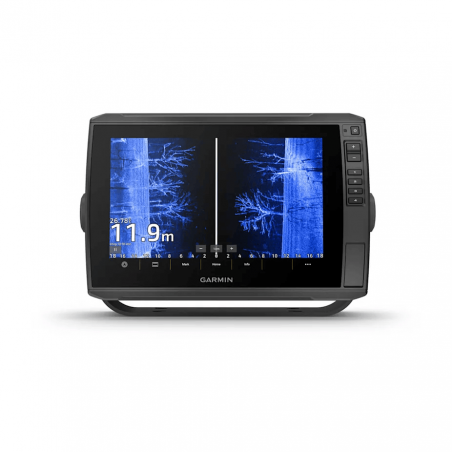

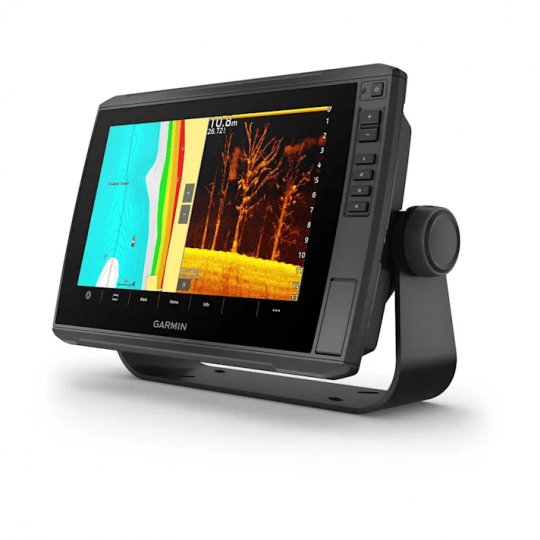

The fish finder Garmin Echomap Ultra 2 102sv is a handset equipped with a 10-inch touchscreen. This versatile device offers a multitude of features for detecting fish and structures such as weeds, wrecks, and rocks.
The bright touchscreen allows you to clearly visualize the detections, even under direct sunlight. This fish finder Supports cards Garmin Navionics+™ and Garmin Navionics Vision+™, providing precise cartographic details and regular updates for coastal and inland waters.
The Garmin Echomap Ultra 2 supports LiveScope™ real-time detection technology (probes sold separately), offering you accurate and live images of what's happening underwater. You can also choose a transducer GT56 for ultra-high definition ClearVü™ and SideVü™ scanning, as well as a fish finder traditional CHIRP for detailed images of the bottom structure.
The Vivid color palette used by the fish finder Scanning helps to identify targets and the structure of the bottom more easily, thus improving your fishing experience.
The wireless network allows you to share images. fish finder, waypoints and tracks if you are using anotherfish finderEchomap Ultra 2 or Echomap UHD2 on your boat. Compatibility with the NMEA 2000® network makes it easy to connect to electronic compasses, autopilots, Fusion-Link™ audio systems, and other electronic equipment.
With multi-band GPS technology, you benefit from more precise geolocation, allowing you to navigate with confidence among the shallows and your various GPS points.
Pairing with the free ActiveCaptain® app allows you to perform software updates, record your screen, and use community data. Garmin Quickdraw™. Moreover, the wireless connection to the Force electric motor gives you the ability to navigate to waypoints, plot and follow routes.

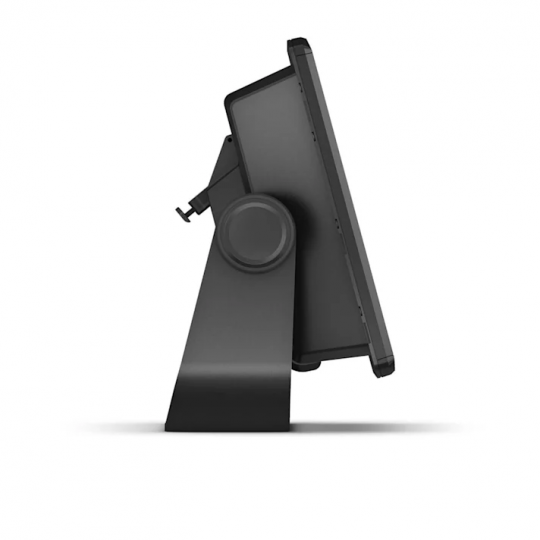

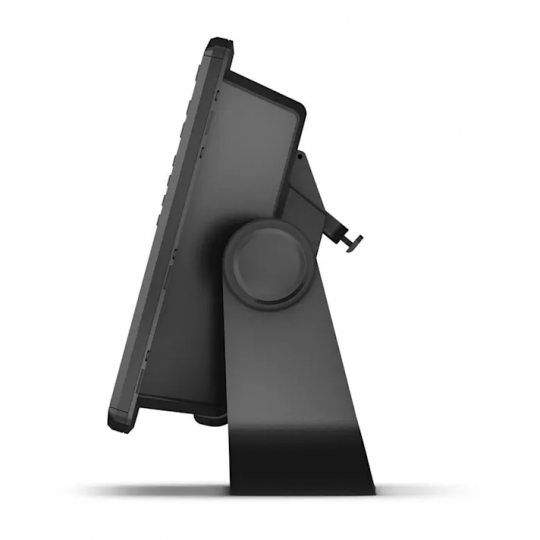

The installation of this fish finder is easy and convenient thanks to its quick-release mounting bracket, making your fishing experience even more comfortable.
In the box:
With transducer
- ECHOMAP Ultra 102sv
- Transducer GT56UHD-TM
- Charging/data cable
- Mounting stirrup with quick release base
- Sun visor
- Equipment
- Documentation
Without transducer
- ECHOMAP Ultra 102sv
- Charging/data cable
- Mounting stirrup with quick release base
- Sun visor
- Equipment
- Documentation
Features:
General
- Physical dimensions: 29.5 x 19.5 x 9.8 cm (11.6" x 7.7" x 3.9")
- Weight: 1.8 kg (4 lb)
- Water resistance : IPX7
- Touch screen
- Display type: WXGA, IPS
- Display format (width by height): 21.7 x 13.6 cm; 21.7 cm diagonal (8.5" x 5.4"; 10" diagonal)
- Screen definition (width by height): 1,280 x 800 pixels
- Mounting options: On bracket or recessed
- Buttons: Touch screen with keyboard assistance
Cards and memory
- Accepts memory cards: 2 microSD cards
- Waypoints: 5000
- Plot points: 50,000
- Tracks: 50 tracks recorded
- Routes: 100
Sensors
- GPS
- GLONASS
- Galileo
- BeiDou
- Integrated receiver
- GPS Antenna: 10 Hz
- NMEA 2000® Compatible
- Supports WAAS
- Supports multiband GPS and multiple satellite constellations
Optional support for the card
- BlueChart g3
- BlueChart g3 Vision
- Garmin NavionicsThe text you provided doesn't seem to be in French. Could you please provide a valid French text to translate?
- Garmin Navionics Vision+™
- TOPO 100K
- Standard mapping
- Garmin Quickdraw Contours
Plotter functions
- Support for the AIS function (searches for the position of the nearest ships)
- Support for the ASN function (displays position data from ASN-compatible VHF radios)
- Supports radios compatible with FUSION-Link™
- Compatible with ActiveCaptain : Yes
- Functions for sailing
Electrical characteristics
- Nutrition : from 9 to 18 V c.c.
- Observed consumption at 12 V DC : 2.3 A
- Maximum consumption at 12 V c.c. : 5 A
- Maximum consumption at 10 V c.c. : 34 W
Functions and characteristics of fish finder
- Display of fish finder
- Output power: 600 W
- Fish finder traditional (double frequency/beam) : Integrated (Single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)
- ClearVü: Integrated 260/455/800/1000/1200 kHz
- SideVü: Integrated 260/455/800/1000/1200 kHz
- Panoptix™ sonar
- "Livescope"

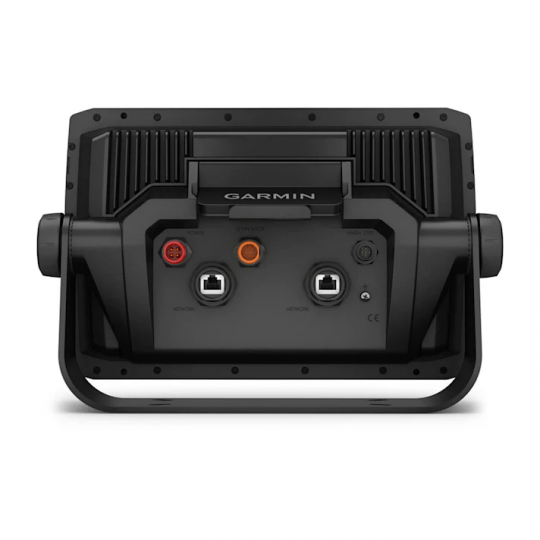

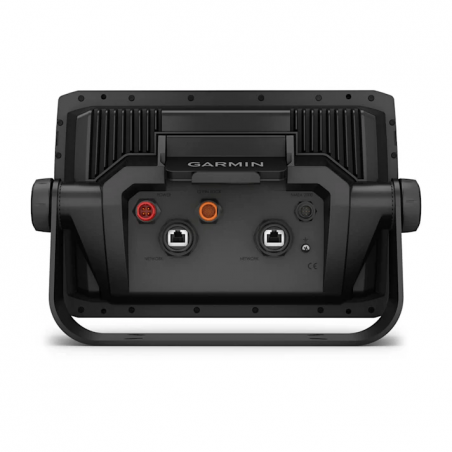

Connections
- NMEA 2000® Ports: 1
- Network ports Garmin Marine Network™: 2 (large connectors)
- Ports of transducer with 12 pins: fish finder 12-pin scanning
- ANT+™ (connectivity)
- Network Garmin Wi-Fi® (local connection)
