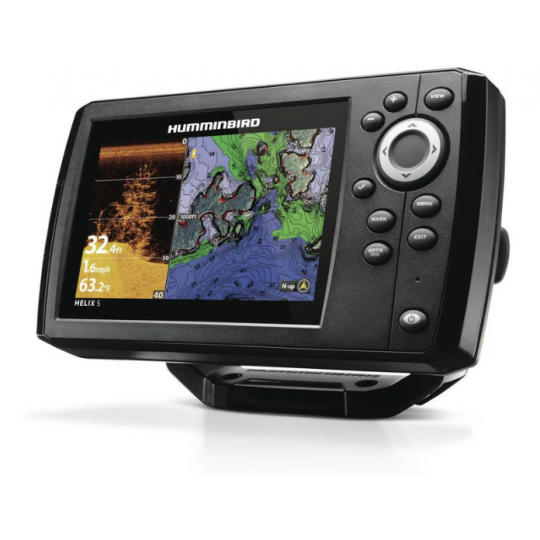

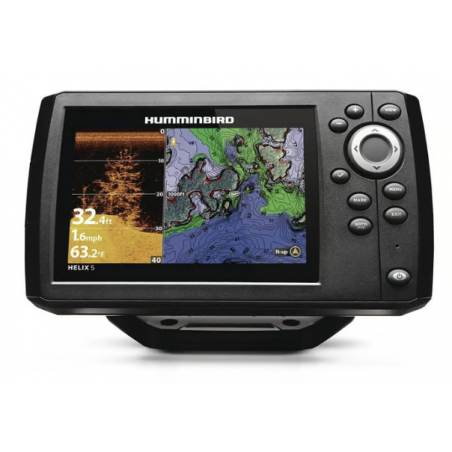

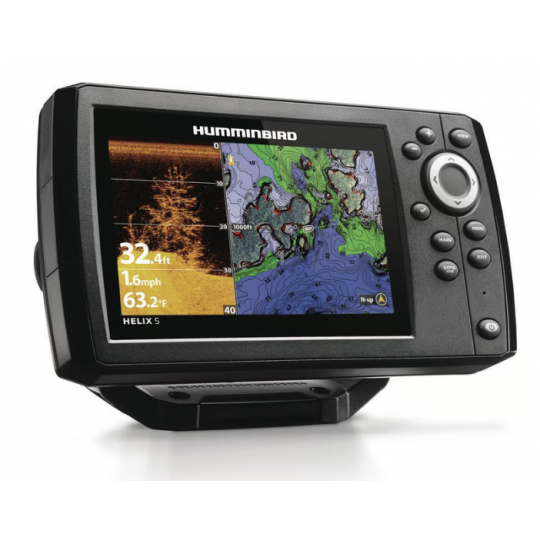

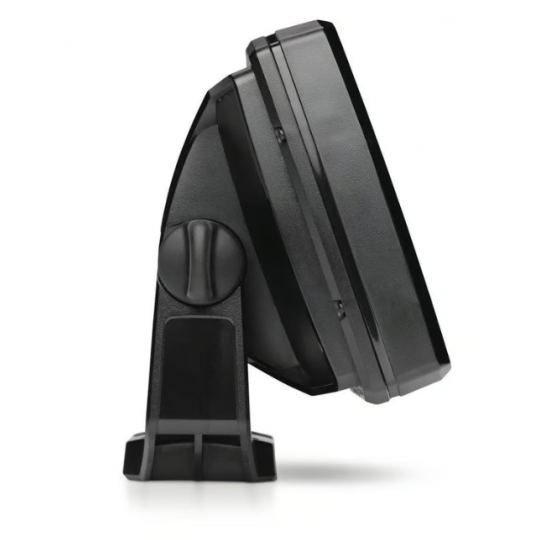

Humminbird's Helix 5 sounder is equipped with a 5” panoramic color screen, offering good display quality without compromising size or bulk. The Helix 5 Chirp GPS G3 is equipped with advanced technologies such as Down Imaging sounder for detailed viewing under the boat, and Dual Spectrum CHIRP 2D which offers two scanning modes: a wide mode to scan large areas and a narrow mode to focus on fine details.
What's more, it incorporates accurate GPS with a Humminbird base map and AutoChart Live functionality, which allows you to create detailed maps of your fishing grounds in real time. This function records depth data, seabed composition and the presence of vegetation as you navigate, with up to eight hours of recording time.
Last but not least, the intuitive keypad offers quick access to essential functions and preloaded views, thanks to programmable keys that ensure easy and reliable operation of the sounder, whatever the environmental conditions.
The compact size of this echo sounder is perfect for use on a boat or float tube. It's an easy-to-use, high-performance echo sounder.
Features:
Compass : No
Autopilot: No
NMEA 2000: No
360 Imaging: No
Chirp Radar: No
GPS Tracker: Yes
Navionics : Yes
Platinum +: No
Waterproof: IPx7
GPS function
Arrival alarm, Drift alarm, Off-road alarm, Card reader, Route projection line, North map orientation, Map orientation towards destination, Route tracker, GPS speed.
Probe functions
Low battery alarm, Temperature alarm, Fish alarm, Depth alarm, Freeze frame, Screenshot, Large numbers, Customizable data, Split screen with 2 frequencies, RTS window, Noise filters, Fish ID, Fish ID+, Navigation data history, Structure ID and Reverse, Card reader. Navionics, Grey line and white line, X-Press Menu, Integrated Simulator, Water Temperature, Scrolling Speed, Optional Surface Speed, Bottom Speed., Zoom on the background
50KHz Option: Yes
GPS Interface: Yes
RMS Power: 50000
Screen type: TFT Color
Type of card: Humminbird Coastmaster, Humminbird Lakemaster, Micro SD, Navionics Please provide the text you want to translate.
Transducer Standard: Rear panel (SH-A109T)
Number of roads: 4500
Screen diagonal: 173
Number of tracks: 5000
Features:
- Fish finder Dual Spectrum 4000 W.
- 5" TFT LCD screen 256 color Full Sun.
- Very high definition screen 800x480 pixels.
- Multifunction GPS / map device fish finder 2D
- Dual Spectrum Technology.
- Down Imaging Technology.
- Peak power 4000 watts (500 W RMS).
- IPx7 waterproof.
- Internal WAAS GPS antenna.
- Micro SD card reader.
- Possibility to take screenshots.
- Compatible cards Navionics + and Autochart Live.
Card reader Yes
Menu in French Yes
AIS Compatibility Yes
Number of colors 256
Power (Peak) 4,000.00
Screen resolution 800 x 480 pixels
3D view of the map No
External GPS Antenna No
Internal GPS Antenna Yes
Number of Waypoints 2,500.00
Number of bundles 200
Screen size W x H 110 x 65 mm
Type of power supply 10 - 20 Vdc external
GPS Card Reader Yes
Humminbird Autochart Yes
Built-in kit Option (SW-TH5)
Dimensions on support 190x130x100 mm
Minn Kota I-Pilot Link No
Separation of targets 650
Integrated mapping Coastline contour
Recessed dimensions 190x105x25 mm
5-port Ethernet Switch No
Water temperature Yes
Humminbird Live Autochart Yes
Total sweeping width 4200
Number of points per Trace 20,000.00
Transducer plastic crossing Option (SH-B107T)
Features of the transducer 455 KHz / 75° @ -10db, DUAL SPECTRUM / narrow beam 180-240 kHz & wide beam 140-200 kHz
Number of navigation screens 200
