Seanox Stainless Steel Slider Seanox For Transducer

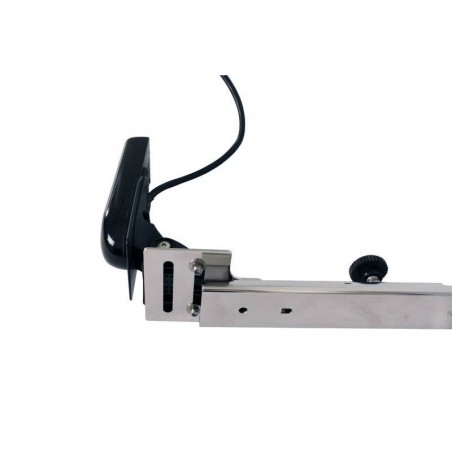

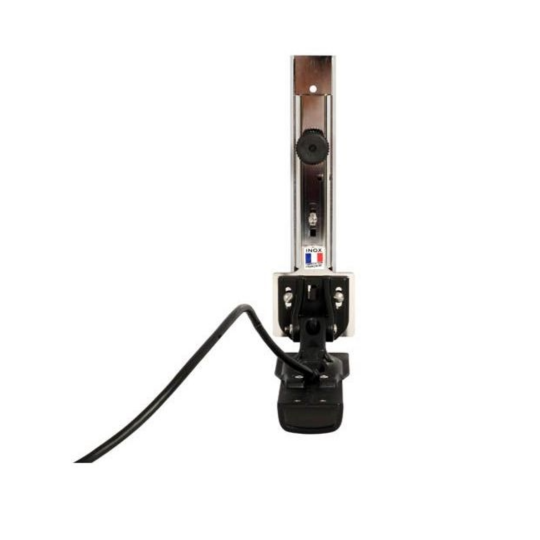

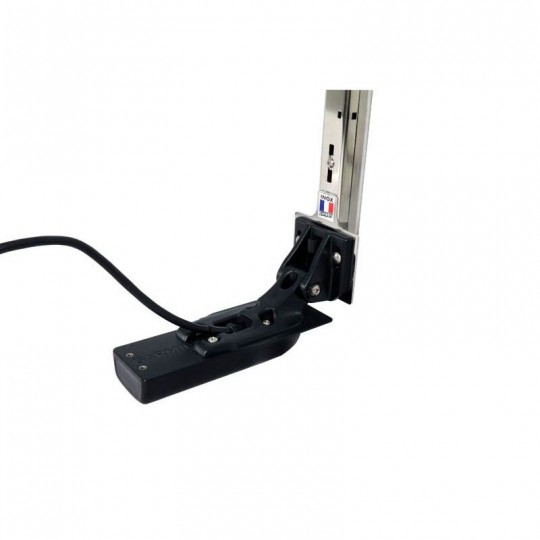

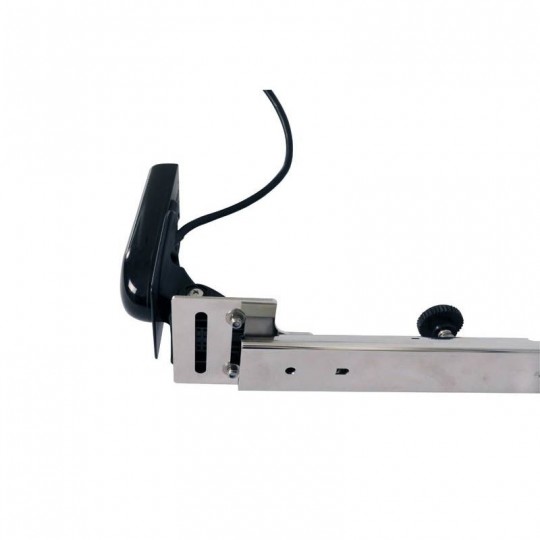

The stainless steel slide for transducer from the brand Seanox, developed by Amiaud is designed and produced in France. It consists of a fixed element to be installed on the boat and a mobile element finished with a universal mounting plate for the installation of a transducer holder. This slide is available in 3 models to match the majority of sondes available on the market (except for AIRMAR 1kW models) and the vast majority of boat hulls.

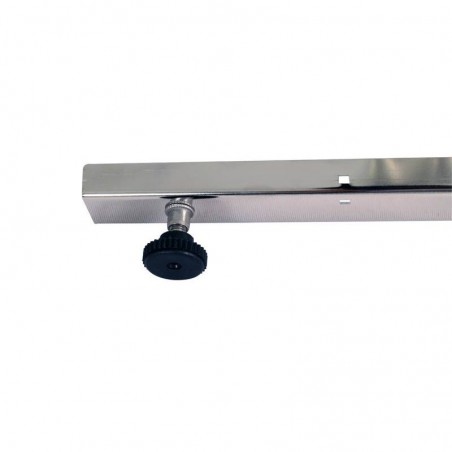

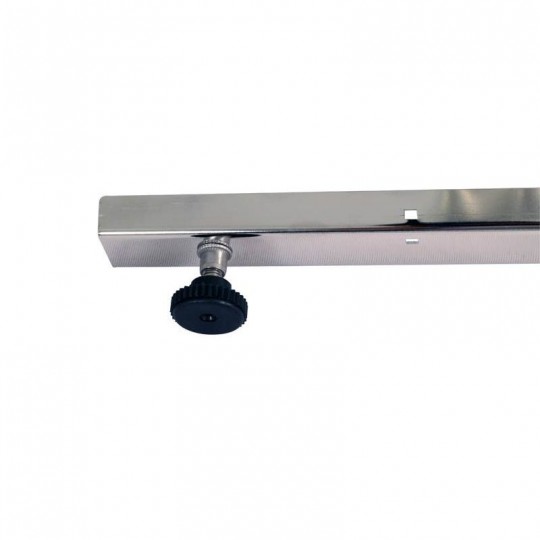

Thanks to oblong openings that facilitate precise adjustments, thus ensuring optimal detection. The mobile element is securely held in the low position by a stainless steel nut adjustable over 30mm, allowing meticulous adjustment of the height of the transducer without the need for disassembly. This adjustment, once made, remains in place even after the removal of the transducer.

The transducer can be completely removed by simply loosening the M8 plastic button, convenient during groundings, towing, or dry storage at the port, thus avoiding the cleaning of algae or shells that normally accumulate on the transducer and reducing the need for antifouling.

Technical characteristics:

• Material: 2mm thick 316L stainless steel.
• Installation on the boat via a non-included screw system.

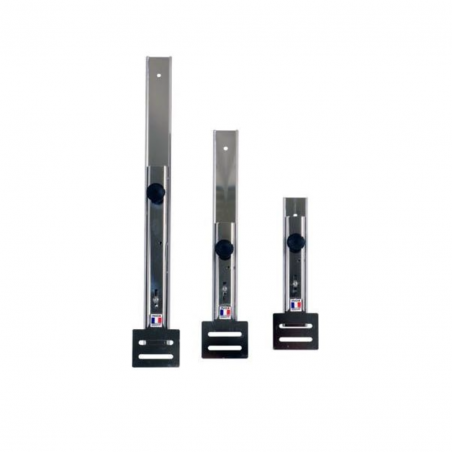

• Telescopic slide with an adjustable mobile stop: available lengths in Small Model (SM) 220mm, Medium Model (MM) 220mm, and Large Model (LM) 320mm.
• Fixed slide with a fixed stop: available lengths in SM 215mm, MM 330mm, and LM 465mm, with a standard width of 75mm. Pre-drilled holes for installation on the transom with a diameter of 6.2mm.

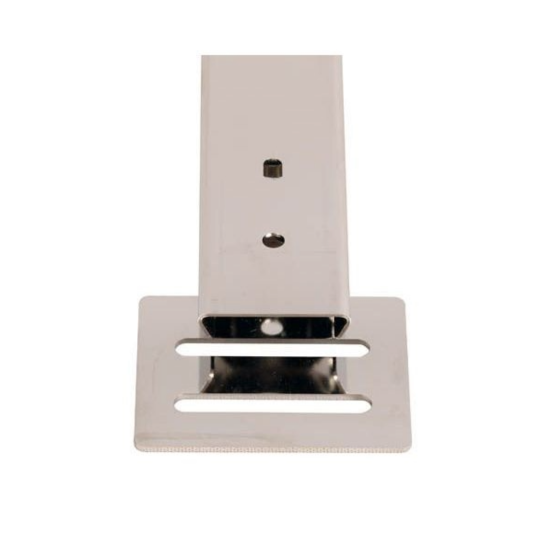

• Stainless steel mounting plate for the transducer with dimensions of 75mm by 60mm, equipped with two horizontal oblong openings of 55mm by 7mm.
• Recommended navigation speed: up to 25 knots.
